Protein-ligand docking and in silico high-throughput screening for Windows














This program is an independently developed extension for Vina.
Vina is a program for flexible ligand docking under Windows OS.

Vina Control and Post Processing Tools (VcPpt)
can carry out high-throughput screening of compound libraries with Vina and sort
resulting PDB files of ligands by binding energies and by binding positions.
These additional functions do not require Vina installed.

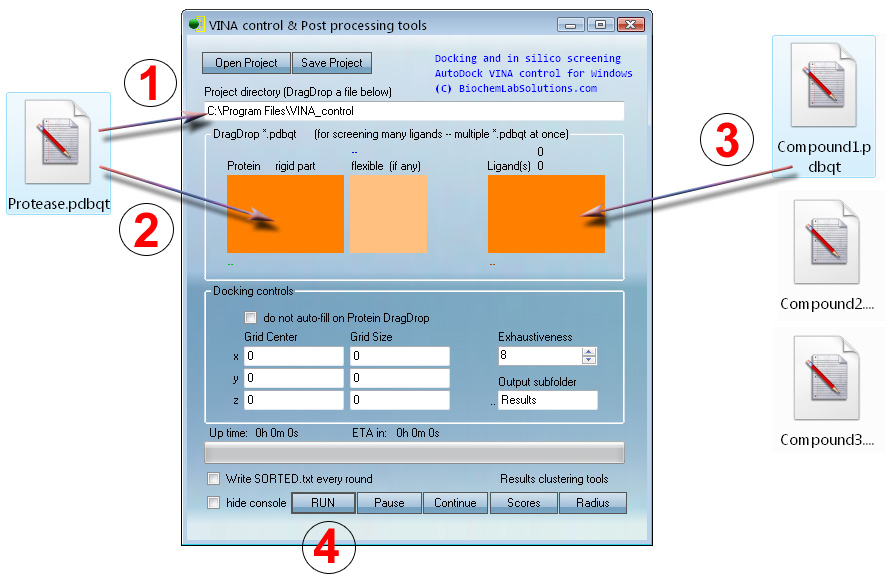

Basic docking or screening with VcPpt can be set up in just four mouse moves:


Note that grid parameters are automatically computed at step 1 to cover the entire Protease.pdbqt.
Optionally (for advanced users) - to focus fitting on a specific protein pocket, enter the x, y, z manually.
At step 3, any number of ligands (100,000 ? - sure) can be drag-dropped for automatic screening.

 "Grid box" is a selection of 3D space around the protein.
Ligands are being moved and docked only within constraints of this 3D box.
Box center = "grid center", box size = "grid size".

pdbqt format?




Results sorting tools



Docking results from 20 small molecule ligands (as on this picture) can be managed very easily.
As count grows to 1000 or <much> more, sorting and clustering of the docked solutions becomes
the primary task.

VcPpt contains all the tools for very rapid processing of the docked results to group them by energy,
binding pockets, or both. Vina.exe is not required for these tasks and need not be installed.




This panel is useful for finding the best binders from in silico high throughput screening. An in silico screen may result in 10,000+ pdb
files, most of which will have poor scores and need to be omitted from further analysis. Here one can find top binders and copy
them to a new subfolder through a simple procedure.

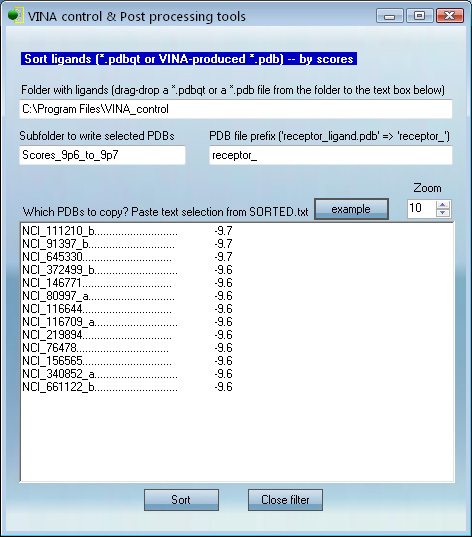

1.  Provide folder with screening results in place of "C:\" .
2.  Give subfolder name for placing filtered PDB results in place of "Scores..."
3.  PDB files from docking/screening run have file names in the form

     "receptor_ligand1.pdb",
     "receptor_ligand2.pdb",
     "receptor_ligand3.pdb",
      .....

     "receptor" is the name of the protein PDBQT file used in the screening
     "ligand1", "ligand2".... are the names of the small molecules PDBQT

     At this step the program will need to know the protein name used.

     For example, If the screening was done with "kinase.pdbqt", "kinase_" should be typed instead of "receptor_".

4. Final large text box contains the filtering rules. Ligands listed there provide the guide for
     finding and copying PDBs to the filtered subfolder.

    The whole-ligand list is automatically generated during the docking run and is called "SORTED.txt".
    One should open SORTED.txt in a text editor and copy any number of entries (for example, top 100)
    to the filtering rules window. When copying, avoid empty lines at the list's end. Each line should have
    a ligand.

5. The "Sort" button will run the sorting job.


If "SORTED.txt" is not available (for example, you combined separate VcPpt screening results into
one folder, or have Vina docking results made not* with VcPpt), it is easy to make new SORTED.txt.

1. In VcPpt, click "Radius".
2. Drag-Drop one of the PDBs to the orange pad (this will point VcPpt to the right working directory with Vina outputs)
3. In "Make SORTED.txt for any folder with VINA PDBs", PDBQT protein name with "_" goes instead of "receptor_"
    (as in step 3 above)
4. "Make" will prepare new "SORTED.txt" in the docked ligands directory.


*If PDB docking files were made not with VcPpt, these PDB files must be renamed to contain a common prefix.
For example if one's Vina output files at hand are: "drug.pdb", "adenine.pdb", "19000.pdb",
one renames them to "new_drug.pdb", "new_adenine.pdb", "new_19000.pdb" and
replaces the word "receptor_" with "new_" in the text box of "Make SORTED.txt for any folder with VINA PDBs".
The "Make" button will produce "SORTED.txt".

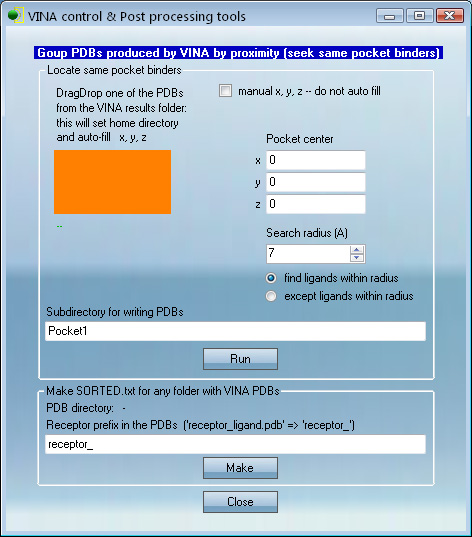

This panel works similar but finds ligands within some distance from a certain point in 3D space.
For example, if one has a ligand and needs to find which other ligands were docked nearby.

1. Drag-Drop this ligand's PDB to the orange pad; x, y and z will be filled pointing at the
    Drag-Dropped ligand's center.
    PDBs to be searched must be present in the same folder with this ligand.
2. The "RUN" button will find PDBs whose top scoring solution is within 7A (distance is adjustable)
    from the x, y, z. These PDBs will be copied to the subfolder "Pocket1".

- x, y, z can be entered manually

- x, y, z can also be computed by copying a few amino acids from the pocket of interest in target protein
to a new PDB file and Drag-Dropping this file to the orange pad to set x, y, and z of the pocket.
"Manual x, y, z -- do not auto fill" should then be checked to fix the coordinates.
Then Steps 1 and 2 above are done as usual.


All sorting is done based on the top docked solution in the PDB files.
By combining the sorting by scores and sorting by binding position it takes minutes to find the best binders to
any given pocket among thousands of docking results.




How good can docking predictions be? See this calculation vs a real Xray structure:



"not so bad at all" result thanks to the algorithm in vina.exe

For more information on VINA, pdbqt and on how to convert PDB, mol, SMILES
or other files to pdbqt, please visit MGL tools web site.


A good source of small molecule libraries UCSF ZINC database. Millions of its structures can easily
be converted to .pdbqt format and screened with VcPpt.

Interested in our pdb > pdbqt; SDF > pdbqt batch conversion tools or in drug-likeliness
ligand sorting tools?
Inquire by email.


This program is an independent extension for VINA. This site is not affiliated with Vina developers.
